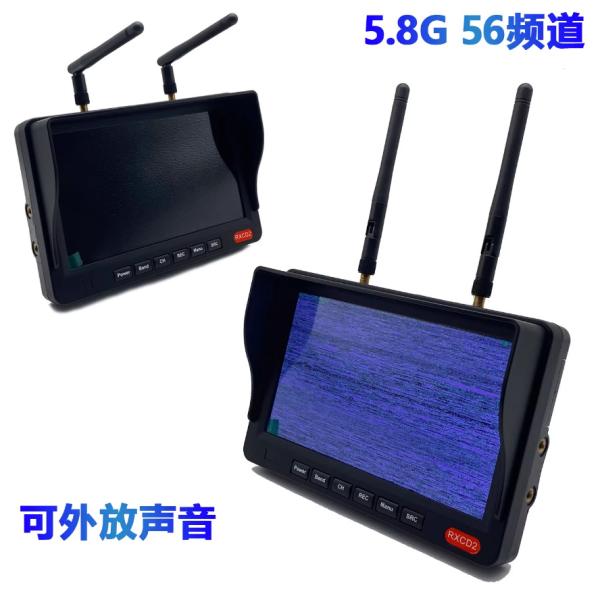

Product Description:
Signal Channel: 5.8G 56 Channels
Screen Size: 7 inches
Resolution: 1024*600px
Screen Brightness: 600cd/m2 IPS high-brightness display
Antenna Interface: RP-SMA internal pin, requires an internal antenna
Built-in Battery: 3.7V 4000mAh battery, provides up to two hours of operation
Highlights: Built-in DVR, supports 64GB GTF card, 800*600 resolution recording; DVR recording duration is adjustable; basic DVR parameters are configurable
AV Interface: 3.5mm AV audio/video input/output, supports 4-pole headphone connection for sound playback
Advantages: Built-in speaker, supports external sound output
Features one-button frequency search, two-button frequency tuning, and adjustable screen color parameters
Features:
Power: Power switch
Band+: Short press to change channel group A-B-C-D-E-R
CH+: Short press to change channel number 1-2-3-4-5-6-7-8
REC: Short press to start/stop recording, long press to search for channel signal
MENU: Menu button, short press to enter the settings interface, automatically exits after 8 seconds of no button operation
SRC: Switch screen working mode, Module A -> Module B -> Dual module fusion -> DVR playback -> AV input display -> Module A
AV interface: 3.5mm audio/video input/output, can connect external headphones
A: ANTA mode
B: ANTB mode
Indicator lights: Red light indicates charging management, constantly on when charging, off when fully charged;
Blue light indicates DVR is working, off when no TF card, constantly on when TF card is active, flashing during recording.
DVR Operation Instructions
1. Briefly press the REC button to start/stop recording.
2. Briefly press the SRC button to switch to MD working mode for DVR playback.
In this mode:
REC button: Playback start/pause
Manu button: DVR parameter settings
Band button: With playback stopped, scroll up the file list and display the first frame of the file
CH button: With playback stopped, scroll down the file list and display the first frame of the file
3. DVR Parameter Settings
Press Manu in the playback interface to enter the settings. In this mode:
Band button: Up the settings screen
CH button: Down the settings screen
REC button: Confirm parameters
Manu button: Switch parameter type, recording duration -> TF management -> Exit settings
Applications:
FPV RC UAV Drone
Customization:
Please provide your customization requirements.
Packing and Shipping:
Standard packaging
